Hardware Data Sheets

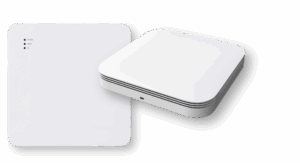

Wi-Fi Access Points

Name	Vendor	Type	Description	Word Doc	PDF
RAP-630W	SonicFI	Wall Plate	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 1Gb Uplink (PoE-In), 3 x 1Gb LAN (1 PoE-Out)
EAP-104	Edgecore	Wall Plate	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 1Gb Uplink (PoE-In), 4 x 1Gb LAN (1 PoE Out), BLE/Zigbee support
EAP-104L	Edgecore	Wall Plate	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 1Gb Uplink (PoE-In), 4 x 1Gb LAN
WF-186H*	Actiontec	Wall Plate	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 1Gb Uplink (PoE-In), 2 x 1Gb LAN
RAP-630C	SonicFI	Ceiling	Wi-Fi 6 2x2 dual band (2.4/5GHz), 1 x 2.5Gb uplink (PoE-In), 2 x 1Gb LAN
EAP-101	Edgecore	Ceiling	Wi-Fi 6 2x2 dual band (2.4/5GHz), 1 x 2.5Gb uplink (PoE-In), 2 x 1Gb LAN, BLE/Zigbee Support
EAP-102	Edgecore	Ceiling	Wi-Fi 6, 4x4 dual band (2.4/5GHz), 1 x 2.5Gb Uplink (PoE-In), 1 x 2.5 Gb LAN, BLE Support
EAP-105	Edgecore	Ceiling	Wi-Fi 7, 2x2x2 triband (2.4/5/6GHz), 1 x 5GbE PoE WAN, 1xGbE LAN, BLE/Zigbee/Thread Support
EAP-111	Edgecore	Ceiling	Wi-Fi 6 , 2x2 dual band (2.4/5GHz), 1x1GB uplink (PoE-In), 1x1Gb LAN, BLE,Zigbee, Thread Support
WF-188N*	Actiontec	Ceiling	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 1 Gb Uplink (PoE-In), 1 x 1Gb LAN
WF-196*	Actiontec	Ceiling	Wi-Fi 6E, 4x4 Tri-band (2.4/5/6GHz), 1 x 5Gb Uplink (PoE-In), 1 x 2.5Gb LAN
OAP-101	Edgecore	Outdoor	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 2.5Gb PoE WAN, 1 x 1Gb LAN, IP68, BLE Support
OAP-103	Edgecore	Outdoor	Wi-Fi 6, 4x4 dual band (2.4/5GHz), 1 x 2.5Gb Uplink (PoE-In), 1 x 2.5 Gb LAN, BLE Support
WF-660A*	Actiontec	Outdoor	Wi-Fi 6, 2x2 dual band (2.4/5GHz), 1 x 2.5Gb Uplink (PoE-In), IP67

*Special order only

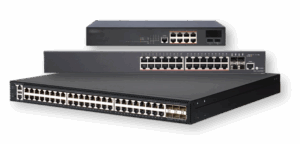

Switches

Name	Vendor	Type	Description	Word Doc	PDF
ECS-2100-10P	Edgecore	10 Port	Access switch-8 x 1Gb PoE+, af/at 120 watts, 2 x 1Gb SPF, 20 Gbps switiching capacity
ECS-4125-10P	Edgecore	10 Port	Access switch - 8 x 2.5Gb PoE++, 2 X 10Gb (SFP+), 30W on 8 ports or 60W on 4 ports for a total of 240W
ECS-4150-28P	Edgecore	28 Port	Access switch - 24 x 1Gb PoE+, 4 X 10Gb (SFP+), total of 370W PoE, 128 Gbps Switching Capacity
ECS-4150-54P	SonicFI	54 Port	Access switch - 48 x 1Gb PoE++, 6 X 25Gb (SFP28), total of 740W PoE, 396 Gbps Switching Capacity
ECS-5550-30X	Edgecore	Aggregation	Aggregation switch-24 x 10Gb SFP+, 6x 100Gb QSFP28, 1 RJ45 console port, 1 USB mgmt port, 1.68Tbps, IEEE1588v2, SYnE, incl redundant power supply
ECS-5550-54X	Edgecore	Aggregation	Aggregation switch-48 x 10Gb SFP+, 6 x 100Gb QSFP28, 1 RJ45 console port, 1 USB mgmt port, 1.68Tbps, IEEE1588v2, SYnE, incl redundant power supply
